When high torque, a tight design, and always-reliable gear motors are required, worm gear motors rise to the top. Such systems are effective in many cases, such as a worm gear motor for robotics and a compact worm gearbox for medical applications, thanks to the benefits they have over planetary gears. The author observes and shows us the important technical features and real-life benefits that help worm gear motors excel in high-precision, high-load situations. More information on motor designs can be found, such as the number of BLDC worm gear motors.
1. Remarkably High Torque Density in Optional Mounting Designs

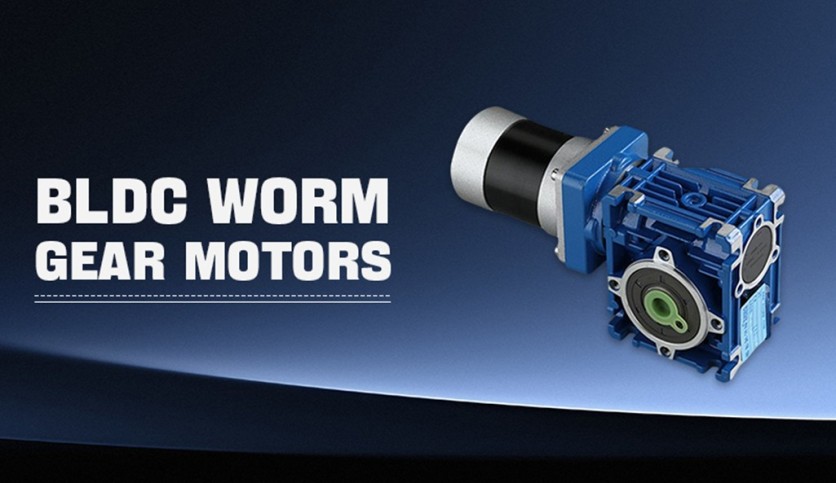

These BLDC-GEAR-W50 worm gear motors give us very high torque output in comparison to their size. Because of their single-stage design, which allows for a proportion change between 10:1 and 100:1 in very minute spaces, they are best for joints in machinery or lifts meant for healthcare operations. A worm gear design allows a motor with 1.1 kW of power to produce up to 33 Nm of torque in a much smaller enclosure than ordinary gearboxes.
What makes this happen is the novel interaction of the worm and the worm wheel. The entire length of the worm's helical bar touches the wheel's teeth at different contact points, dividing the stack uniformly across the connection point. The design helps reduce stress but cuts out the need for complex supports, which is a regular challenge found in multi-stage gearboxes.
It is a technology enhancement in the field of materials that has helped boost the high-torque worm gear motor. Most worms are built from hard case steel, which is typically over 58 HRC, while phosphor bronze (CuSn12) is usually used for worm wheels because of their better wear properties. By combining both, the lifetime of motors used in applications where machines work unbreakably, for example, in bundling apparatus, is ensured.
2. Built-in Self-Locking Mechanism Improves Safety
What sets worm gear drives apart is their one-way motion, which means they can't go backwards. By means of sliding contact, the worm gear and wheel keep the load in position without having to use external brakes. Vertical lifts, along with transport systems and security gates, need self-locking mechanisms, since unexpected motion can be dangerous.
Self-locking systems, as recognized by OSHA rules in 29 CFR 1910.179, are equal to traditional brakes in lifts and cranes, so no extra safety devices are required. During a power cut, the self-locking feature in Electrolift bridges keeps the load secure because of its worm-driven lifts.
Blade DC worm gear motors were added to the sun solar tracker systems. Because of the self-locking feature, the panels stayed properly aligned, which reduced maintenance costs more than hydraulic systems did during strong wind conditions.
3. Quiet and Smooth Operation for Sensitive Environments
When power is passed from the worm to the wheel, vibration is eliminated, and the noise level is less than 60 dB, so these motors are suitable for use in medical devices, laboratories, and food factories. Using a compact worm gearbox for medical applications with modern lubrication and correctly shaped worm teeth, gears can operate efficiently between 50 and 85 percent, depending on how much pressure and how fast they spin.
Spur gears produce more noise when teeth engage, but cycloidal reducers don't make much noise and lack the self-locking feature.
4. Durability Under High-Load Conditions
The engineering for worm gear motors is designed to extend their expected life. The system's bronze parts are designed to wear out instead of the steel material, helping to keep equipment in use for longer. Large recycling machines and material handling systems are powered by worm gears, which are able to handle heavy weights and continuous use at service factors of 1.6 to 2.0. Efficiency for the duplex worm gear motors from Brushless.com typically ranges from 60% to 85% at low speeds (from 1,800 RPM), and their high-precision machining ensures minimal backlash for reliable motion control. Plastic gears fail to overcome worm gears in applications that face continuous high shock loads, often seen in recycling machines and handling systems.
BLDC worm gear motors have uses in both auto steering and adjustments to dental chairs. Being able to turn 90 degrees at the output shaft means worm gear motors can work well in the limited spaces found in folded drive trains for both packaging equipment and vending systems.
Case Study: Worm Gear Motor for Robotics
A recent project with a robotics OEM highlighted the BLDC Worm Gear Motor's role in a surgical robot. The motor's 10:1 reduction ratio and 90° output enabled precise joint movements within a 30mm diameter housing, reducing the system's footprint by 40% compared to planetary alternatives. The self-locking feature ensured tool stability during delicate procedures, aligning with ISO 13485 standards for medical devices.
Emerging Applications: In renewable energy, worm gears are critical in wave energy converters, where their corrosion-resistant variants endure saltwater exposure while maintaining high torque worm gear motor accuracy.
Comparison: Worm Gear Motor vs Planetary and Cycloidal Drives
| Feature | Worm Gear Motor | Cycloidal Drive | Planetary Gear |
| Efficiency | 50–85% | 85–95% | 90–97% |
| Backlash | ≤1 arcmin | ≤0.5 arcmin | ≤3 arcmin |
| Self-Locking | Yes | No | No |
| Cost | Lower | High | Higher |
| Noise Level | <60 dB | <55 dB | 65–75 dB |
While cycloidal drives excel in precision robotics, and planetary gears in high-speed applications, worm gears strike a balance between cost, safety, and torque density.
5. Thermal Administration, Right-Angle Efficiency, and Oil Innovations
Worm gear motors are built using engineering that helps them reach their longest operating life. The system makes use of both hard steel and sacrificial bronze units, so the equipment lasts for longer time.
Worm gears are found in systems such as recycling machines and equipment for handling materials, protecting such equipment against damage under constant heavy loads and continuous operation at 1.6–2.0 service factors. Plastic-gear designs cannot cope with the continuous shock load needed in systems such as recycling machinery and material handlers when compared to worm gears. Automobiles, as well as dental chairs, count on the use of industrial BLDC worm gear motors in their systems. Their ability to produce a 90° output shaft enables worm gear motors to be easily used in folded drive trains in packaging and vending.
Conclusion: Why Worm Gear Motors Still Matter in 2025
Worm gear motors are indispensable in high-load precision systems, combining torque density, safety, and adaptability. To explore solutions, or if you are ready to optimize your application? Discover how the BLDC Worm Gear Motor Series delivers precision and power. As industries push for miniaturization and reliability, these motors will continue to dominate sectors like robotics, healthcare, and industrial automation.
